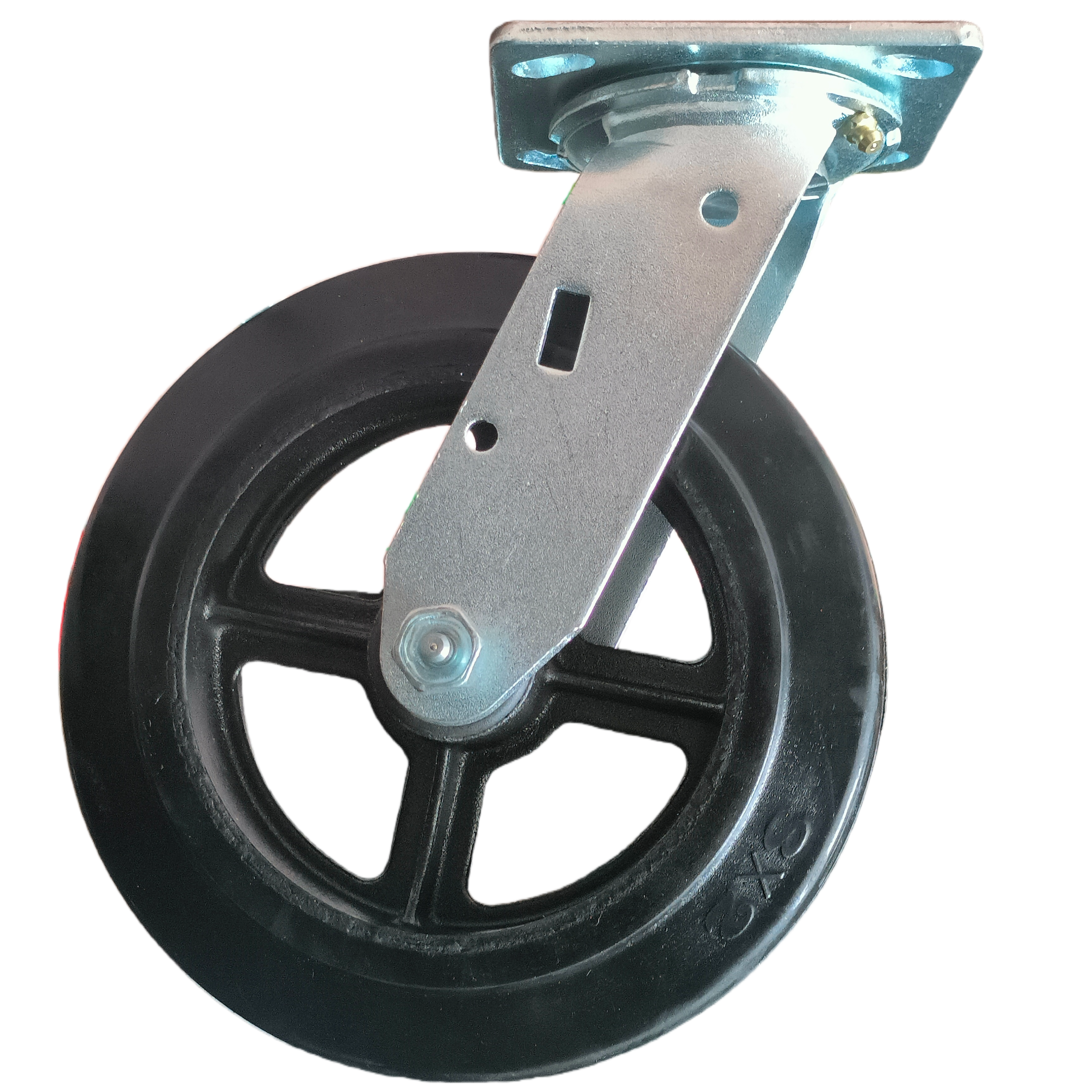

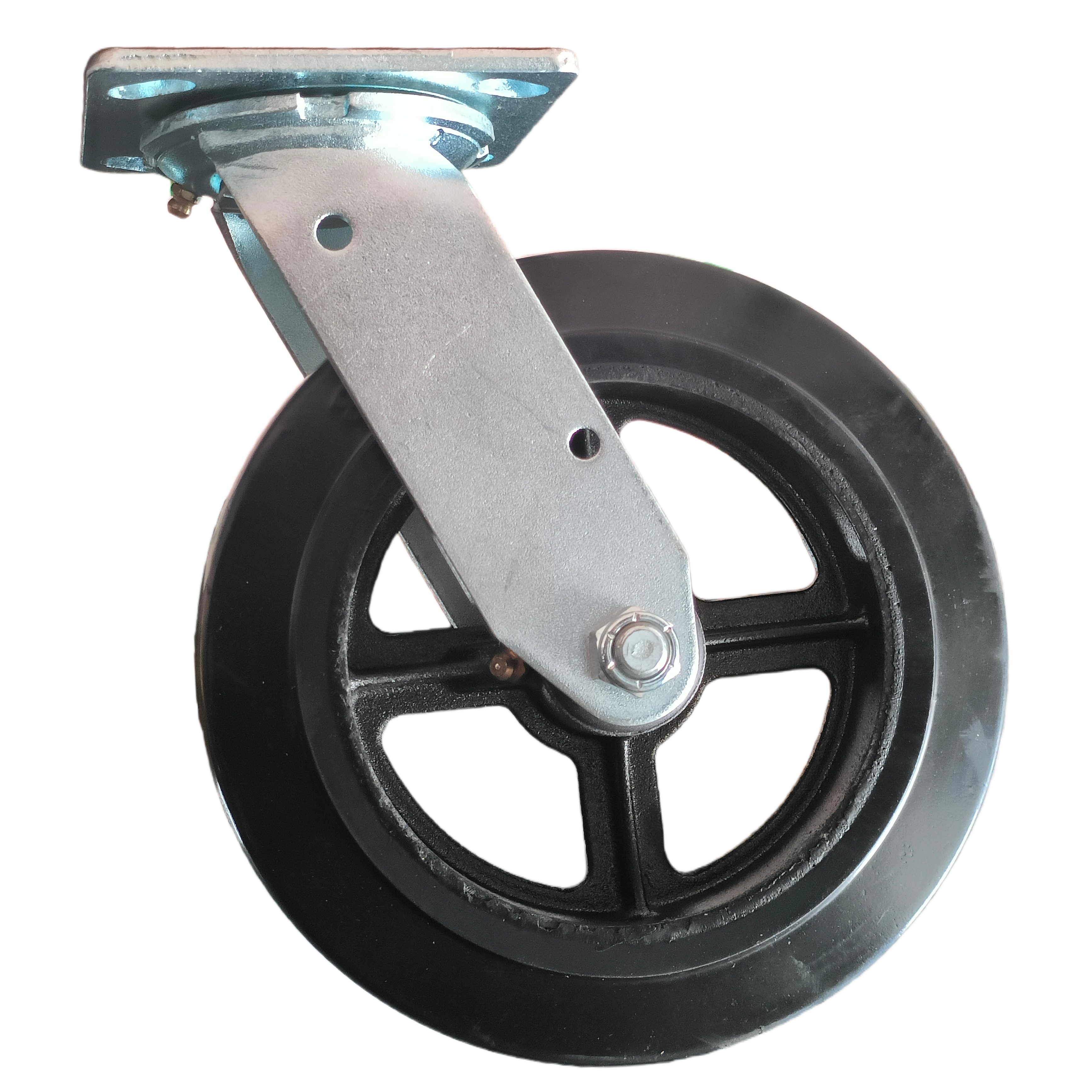

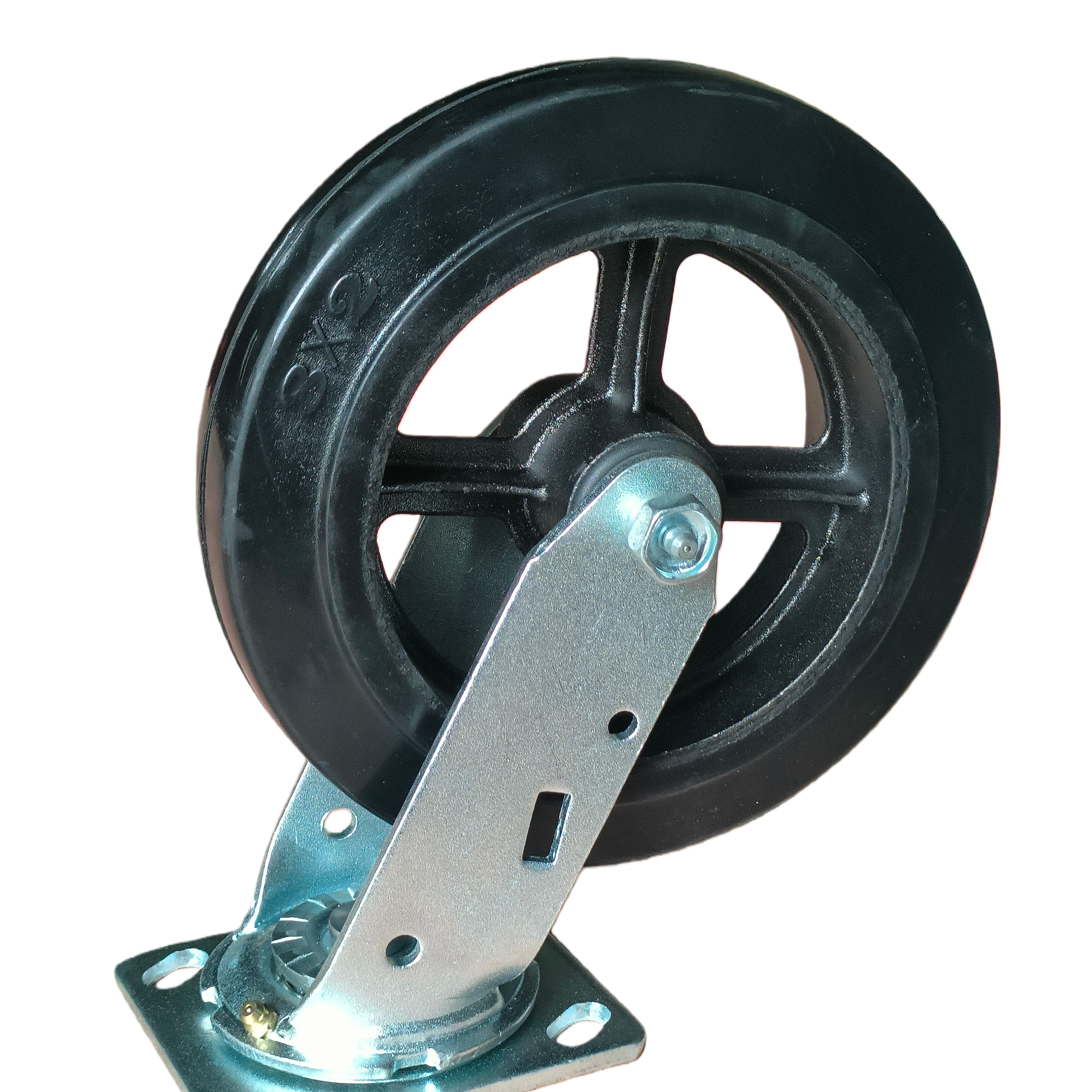

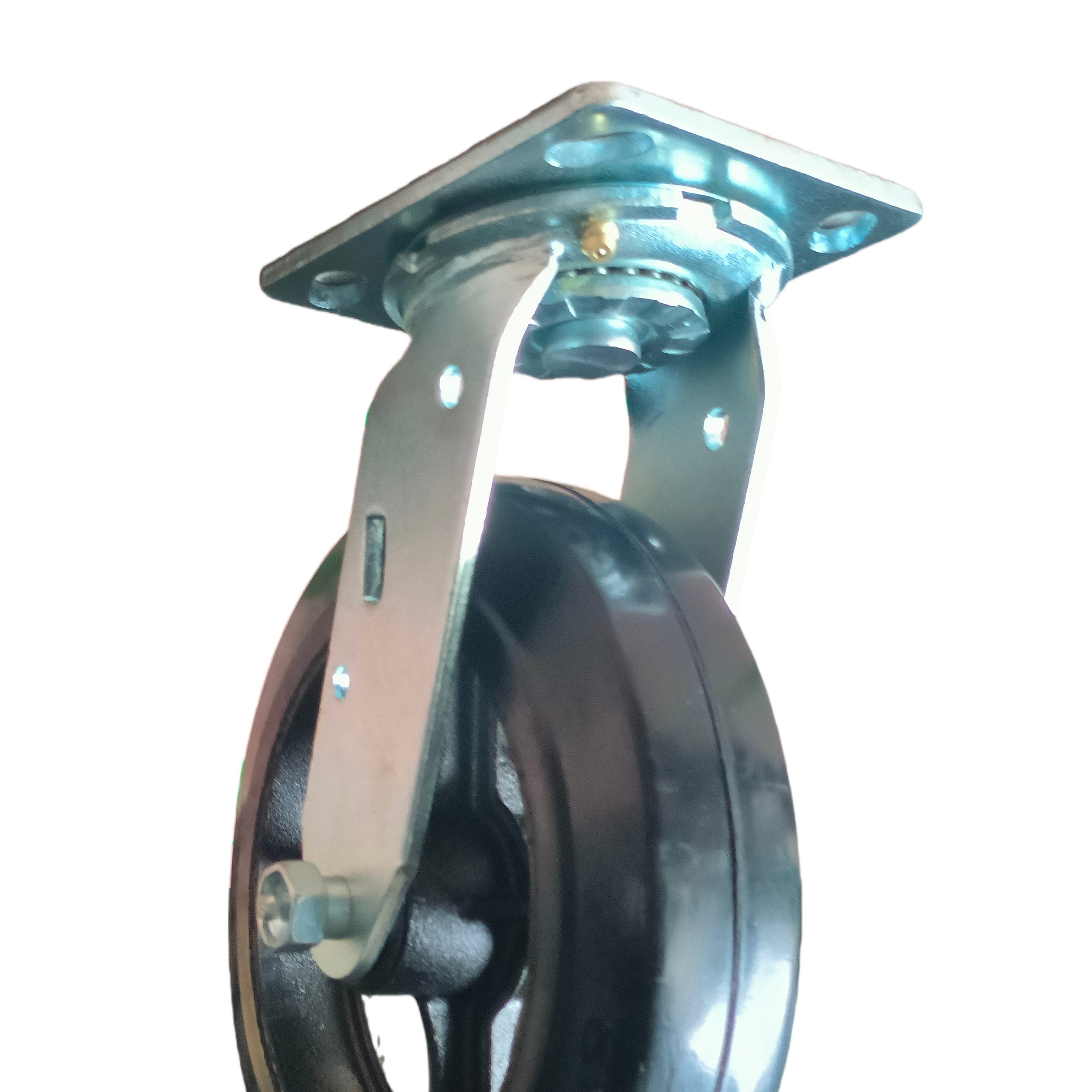

This 8×2 rubber-on-iron swivel caster is built for industrial carts, fabrication fixtures, and material-handling equipment requiring dependable load performance

• The mold-on rubber tread provides shock absorption and quieter rolling, while the cast-iron core strengthens the wheel for continuous-duty environments.
• A heavy-gauge steel yoke, reinforced roller bearing, and grease-service axle bolt contribute to long service life under demanding shop and warehouse conditions.
• Each caster is engineered with a precision bearing tube, sanded steel surfaces before plating, and a brake-mounting slot designed into the frame for optional upgrades.
• The unit delivers stable swivel control, smooth rolling, and reliable durability in daily industrial use.

Key Features

• Mold-on rubber tread for vibration absorption
• Cast-iron core for high durability
• Reinforced roller bearing for smoother rolling
• Zinc-plated steel yoke for corrosion resistance
• Brake-ready mounting slot on the frame
• Heavy-duty construction for industrial carts

Quick-View Specifications

• Wheel Size: 8"×2" (200×50 mm)
• Capacity: 550 lbs (250 kg)
• Tread Material: Moldon rubber
• Core Material: Cast iron
• Bearing Type: Roller bearing
• Overall Height: 9.5" (241 mm)
• Swivel Radius: 6" (152 mm)
• Top Plate: 4"×4.5" (102×114 mm)
• Product Weight: 8.8 lbs (4 kg)

Applications

• Warehouse carts and dollies
• Fabrication shop equipment
• Material handling platforms
• Maintenance carts
• Assembly and production line carts
• Utility and shop floor equipment

Technical Details Table
