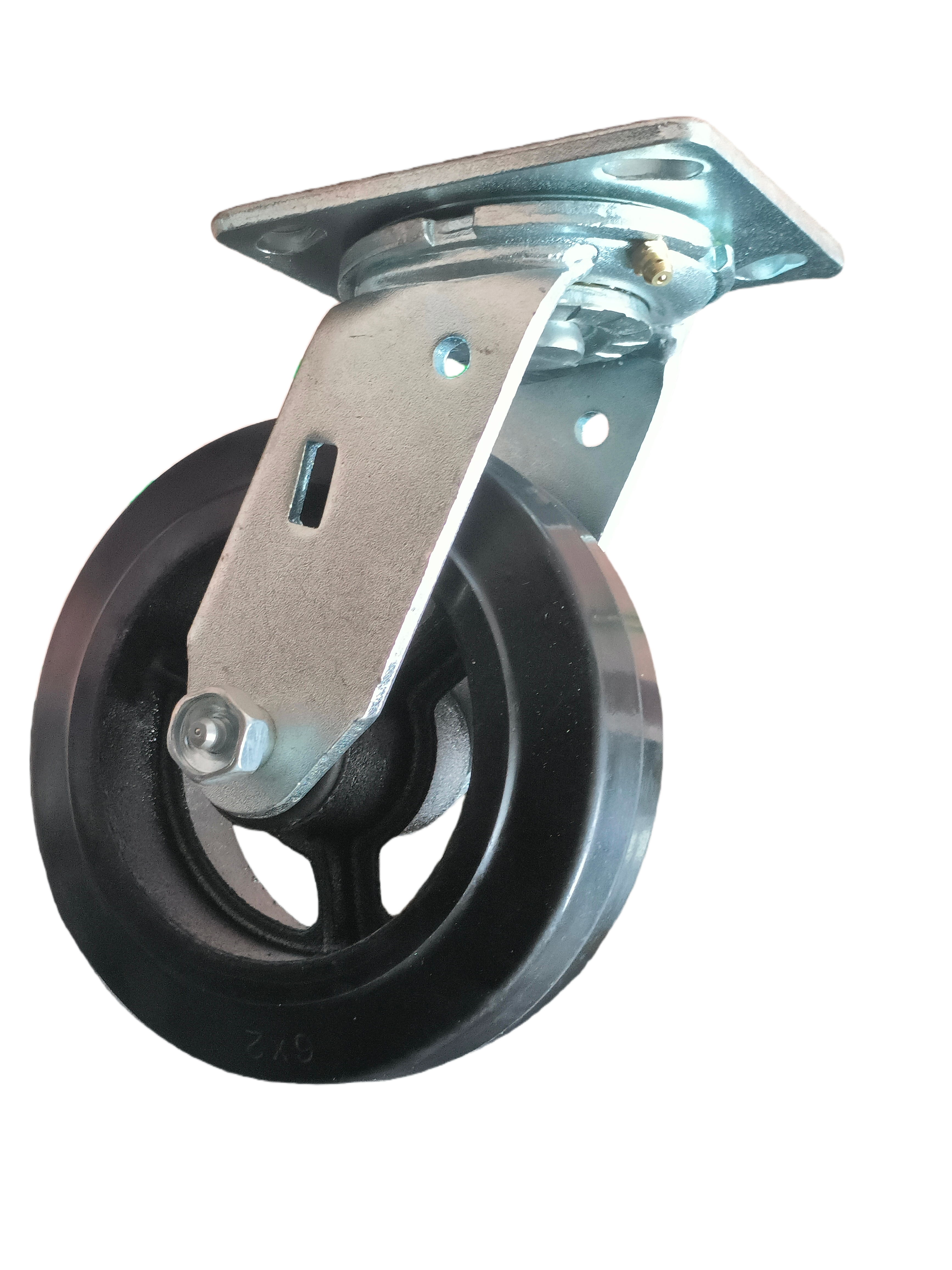

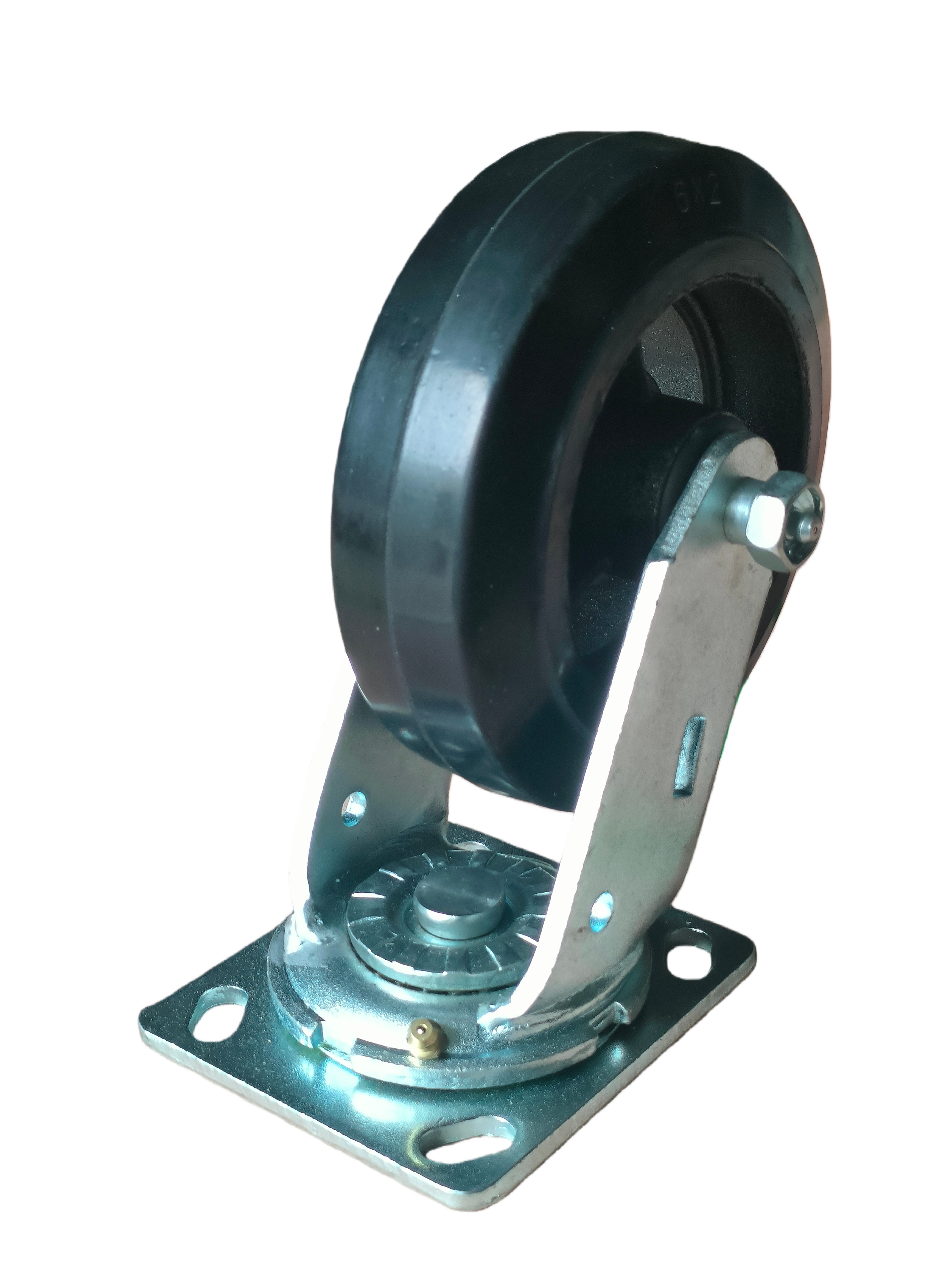

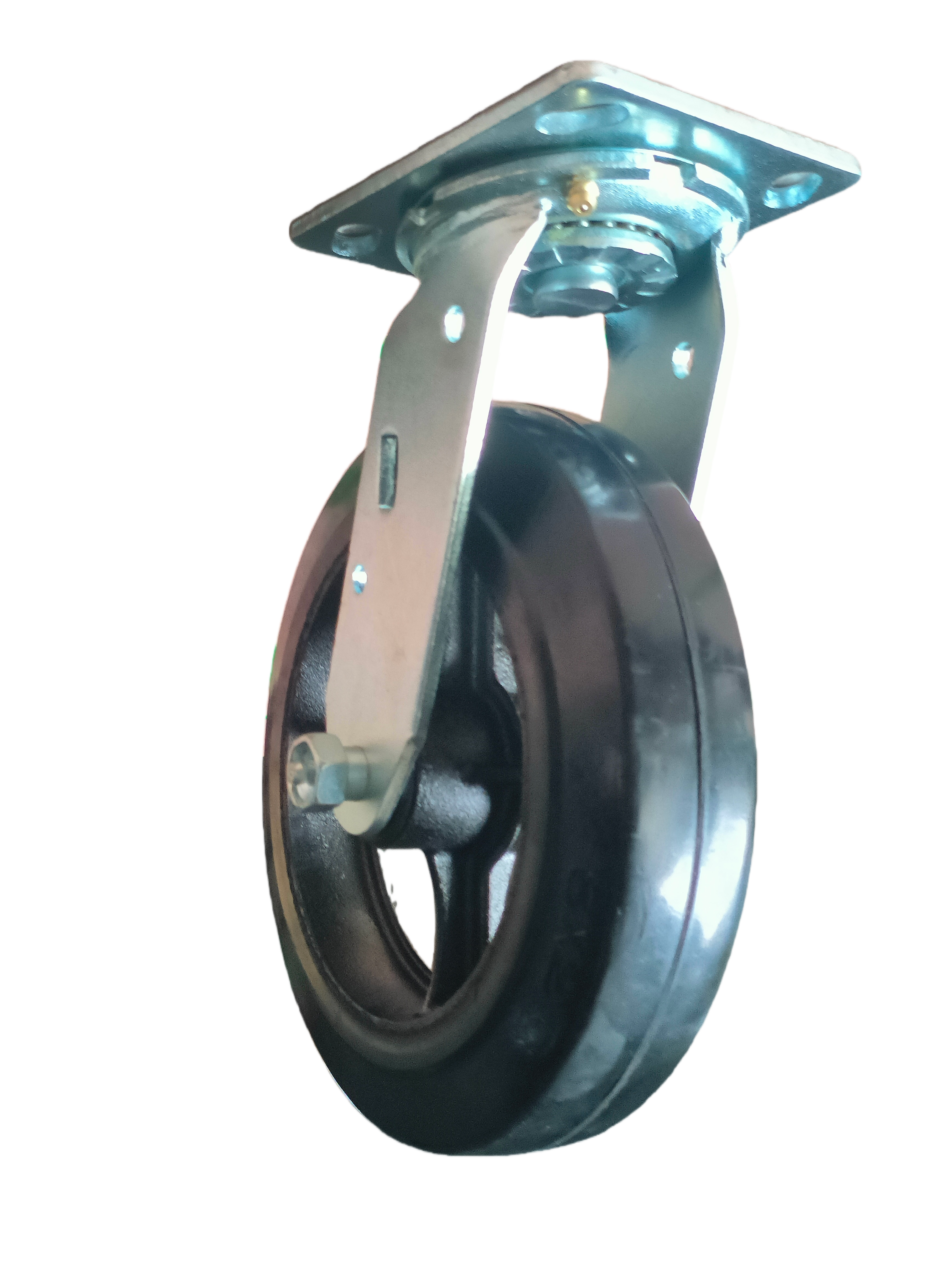

Engineered for industrial environments, this 6"×2" mold-on rubber on cast-iron swivel caster provides strong load capacity, shock absorption, and smooth rolling on rough or hard surfaces

• Perfect for carts, dollies, platform trucks, and warehouse equipment requiring reliable mobility and long-term durability.
• This model features a reinforced steel yoke, precision roller bearing, grease-serviced axle bolt, and side-brake ready frame for optional brake installation.
• Built with attention to manufacturing detail - including double-side welded legs at the raceway, polished bearing tube, and sand-treated surface before zinc plating - this caster offers strength and stability that outperform economy-grade units in industrial use.

Key Features

• Load Capacity: 441 lbs (200 kg)
• Wheel Size: 6" × 2" (150 × 50 mm)
• Tread Material: Moldon rubber (shock-absorbing, quiet rolling)
• Core Material: Cast iron (heavy-duty, high strength)
• Bearing Type: Reinforced roller bearing
• Mounting: Top-plate swivel
• Finish: Zinc-plated steel (pre-sanded surface treatment)
• Brake Ready: Side brake mounting hole included
• Low-noise, floor-safe rubber tread


Manufacturing Advantages

• 6 mm thick steel mounting plate
• Dual-side welded yoke legs at raceway for rigidity
• Sanded surface before zinc plating for better corrosion resistance
• Axle bolt with grease fitting (oil nipple)
• Polished bearing tube for smooth rotation and longevity
• Pre-drilled side brake installation hole

Applications

• Warehouse carts & dollies
• Platform trucks / tool carts
• Industrial rolling racks
• Factory handling equipment
• Assembly line carts
• Maintenance + utility carts

Technical Details Table
