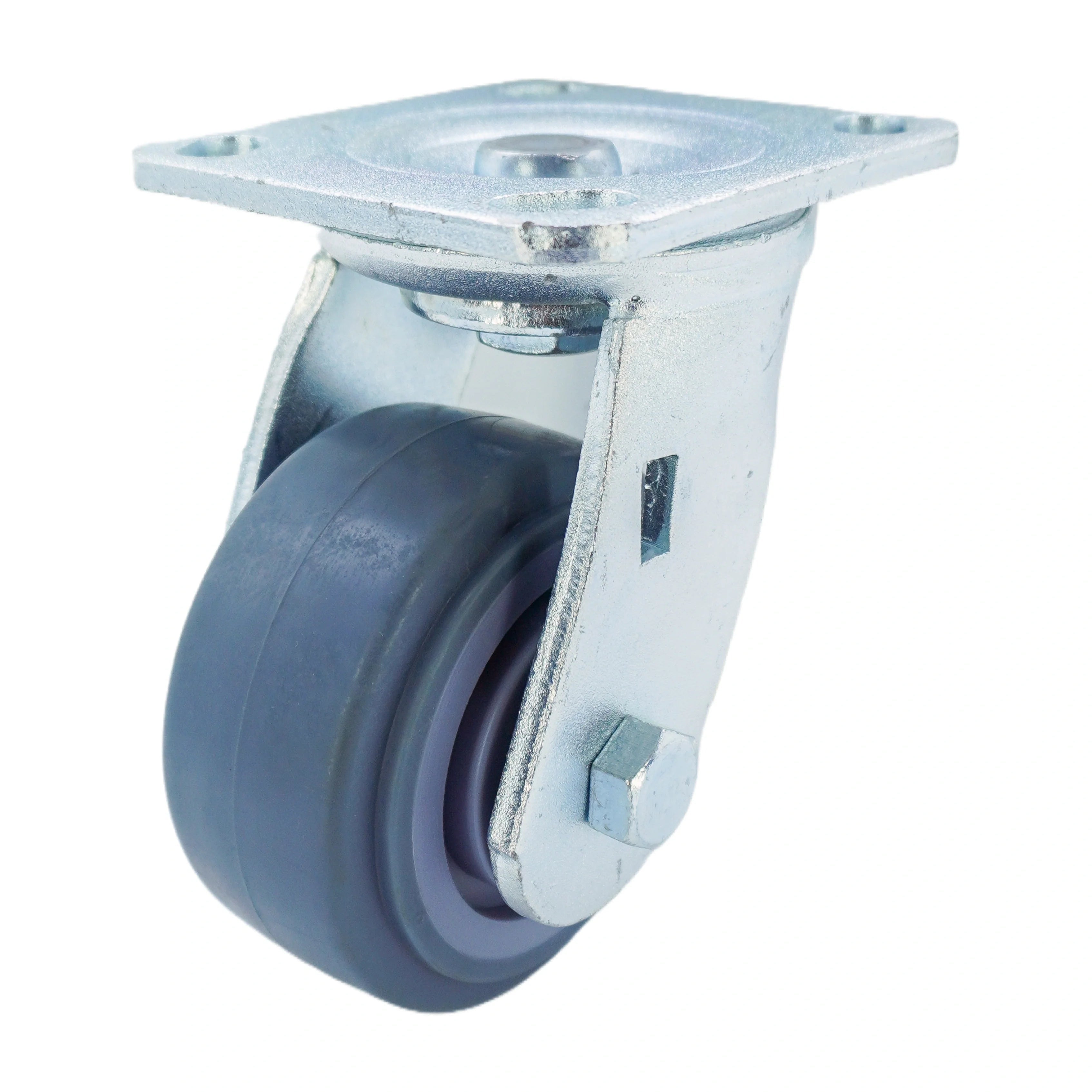

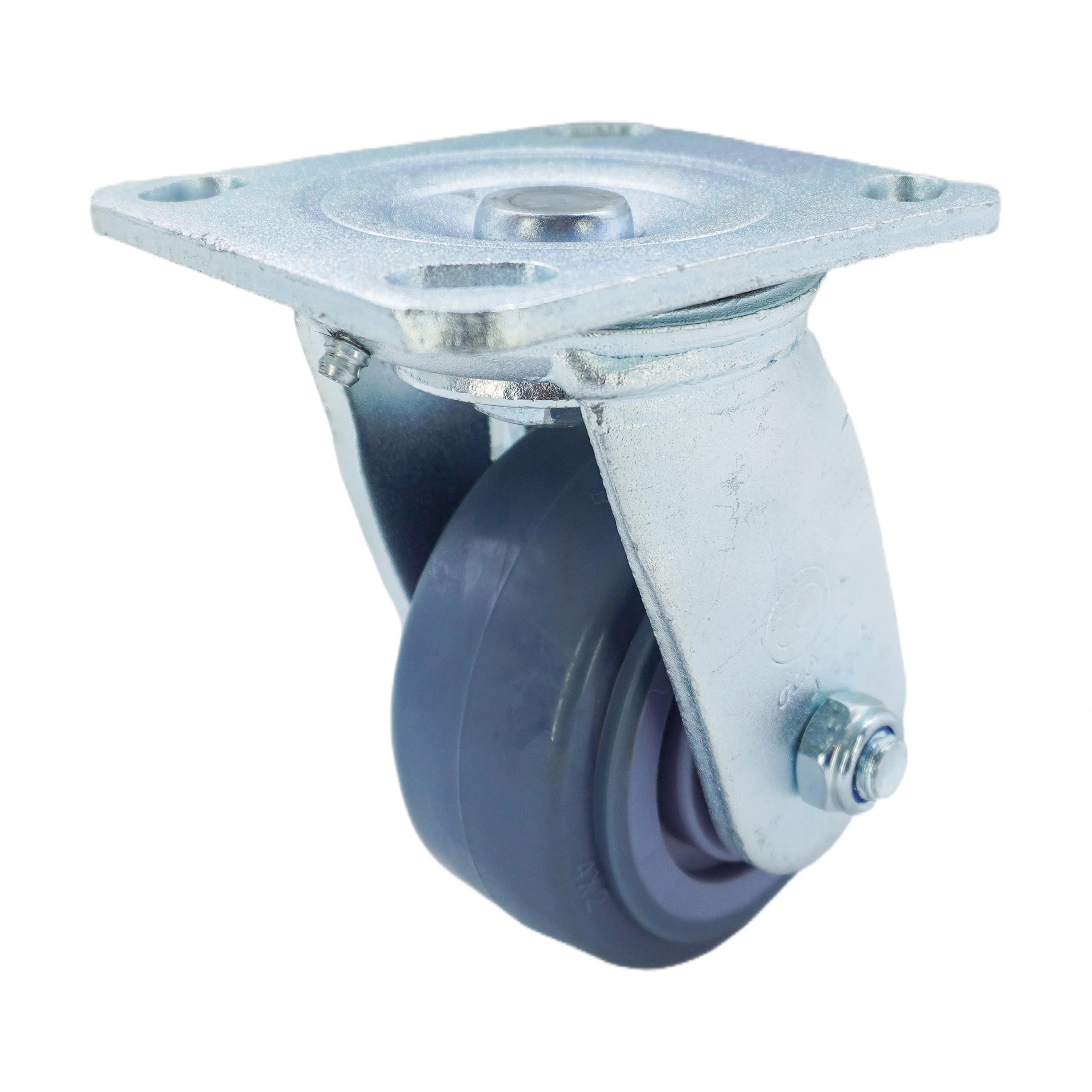

4 inch Premium TPR Wheel Top Plate Swivel Caster | 353 lbs Capacity

$23.80

This 4×2 inch premium TPR swivel caster delivers smooth and quiet rolling performance for workshops, machinery bases, carts, and general material handling equipment The high strength thermoplastic rubber tread provides excellent shock absorption, non marking floor protection, and low noise output, making it ideal for indoor workspaces. The dual ball...

4 inch Premium TPR Wheel Top Plate Swivel Caster | 353 lbs Capacity

4 inch Premium TPR Wheel Top Plate Swivel Caster | 353 lbs Capacity

This 4×2 inch premium TPR swivel caster delivers smooth and quiet rolling performance for workshops, machinery bases, carts, and general material handling equipment

  • The high strength thermoplastic rubber tread provides excellent shock absorption, non marking floor protection, and low noise output, making it ideal for indoor workspaces.
  • The dual ball bearing raceway ensures easy maneuverability, while the blue zinc plated housing offers corrosion resistance and long term durability.
  • With a 353 lbs load capacity and a stable 4×2 inch tread profile, this caster is well suited for environments requiring quiet operation, vibration reduction, and reliable performance under light duty loads.

Key Features

  • Premium TPR tread for quiet and smooth motion
  • Dual ball bearings for easy swivel movement
  • Non marking tread protects indoor floors
  • Zinc plated steel housing for rust resistance
  • Stable 4×2 inch wheel design for light duty loads

Quick-View Specifications

  • 4×2 in TPR Wheel
  • 353 lbs Capacity
  • Top Plate Swivel York
  • Overall Height 5.71 inch

Technical Details Table

Parameter Specification
Housing Type Top Plate Swivel
Wheel Size 4 in (102 mm)
Wheel Diameter 4 in (102 mm)
Width of Tread 2 in (50 mm)
Load Range Light Duty 100–500 lbs
Wheel Material High Strength TPR
Tread Type Flat Tread
Overall Height 5.71 in (145 mm)
Swivel Lead 3.15 in (80 mm)
Top Plate Size 4.49 × 3.94 in (114 × 100 mm)
Bolt Hole Pattern 3.31 × 2.80 in (84 × 71 mm)
Bolt Size 0.43 in (11 mm)
Tread Material High Strength TPR
Capacity 353 lbs (160 kg)
Housing Steel, Blue Zinc Plated
Bearing Type Dual Ball Bearings
Tread Hardness 70 Shore A
Low Temperature -49°F (-45°C)
High Temperature 140°F (60°C)
Application Noise Reducing
Industry Machinery and Workshops
Speed Limited 4 mi/hr (6.4 km/hr)
