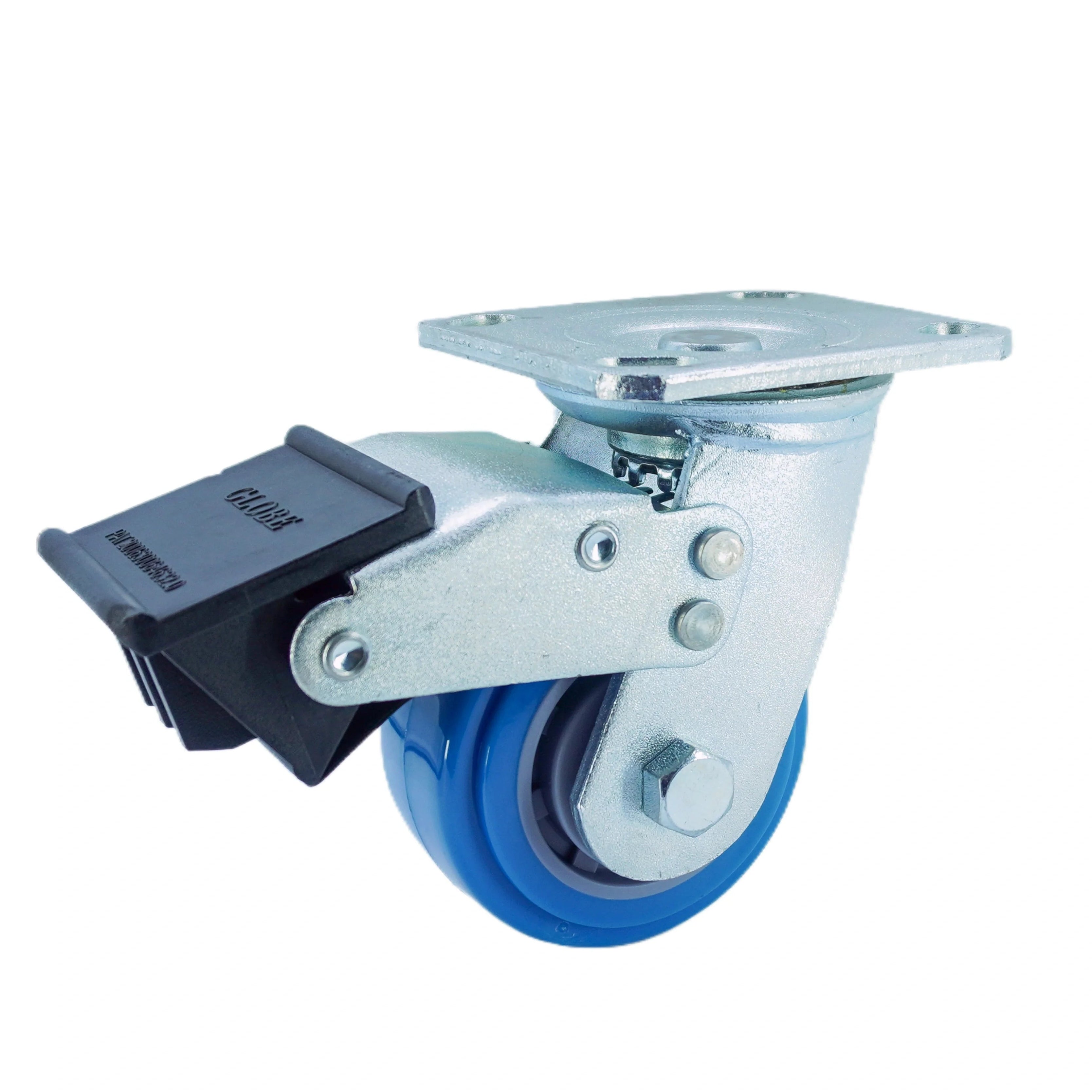

4 inch Premium PU Wheel Plate Swivel Caster with Nylon Total Lock | 617 lbs Capacity

$32.30

This 4×2 inch premium PU swivel caster with a nylon total lock is designed for reliable mobility and secure positioning in medium duty industrial applications Its high strength polyurethane tread provides excellent abrasion resistance, smooth rolling, and long service life while protecting floors from damage. The flat tread ensures stable...

4 inch PU caster side angle close-up

4 inch Premium PU Wheel Plate Swivel Caster with Nylon Total Lock | 617 lbs Capacity

This 4×2 inch premium PU swivel caster with a nylon total lock is designed for reliable mobility and secure positioning in medium duty industrial applications

  • Its high strength polyurethane tread provides excellent abrasion resistance, smooth rolling, and long service life while protecting floors from damage.
  • The flat tread ensures stable movement under load, making handling predictable and efficient.
  • Equipped with a nylon total lock mechanism, this caster simultaneously locks both the wheel and the swivel, ensuring complete stability when equipment must remain fixed during operation.
  • The steel housing with a blue zinc plated finish enhances corrosion resistance for long-term durability in demanding environments.
  • Supported by dual ball bearings, this caster delivers smooth, quiet motion and efficient maneuverability.
  • With a robust load capacity of 617 lbs and engineered for intralogistics and industrial carts, it is ideal for material handling systems that require both mobility and secure anchoring.

Key Features

  • Premium PU tread for abrasion resistance
  • Total lock mechanism securing wheel and swivel
  • Smooth rolling dual ball bearings
  • Steel housing with blue zinc corrosion protection
  • 617 lbs rated load capacity

Quick-View Specifications

  • 4″ wheel diameter
  • 2″ tread width
  • 617 lbs capacity
  • Total lock

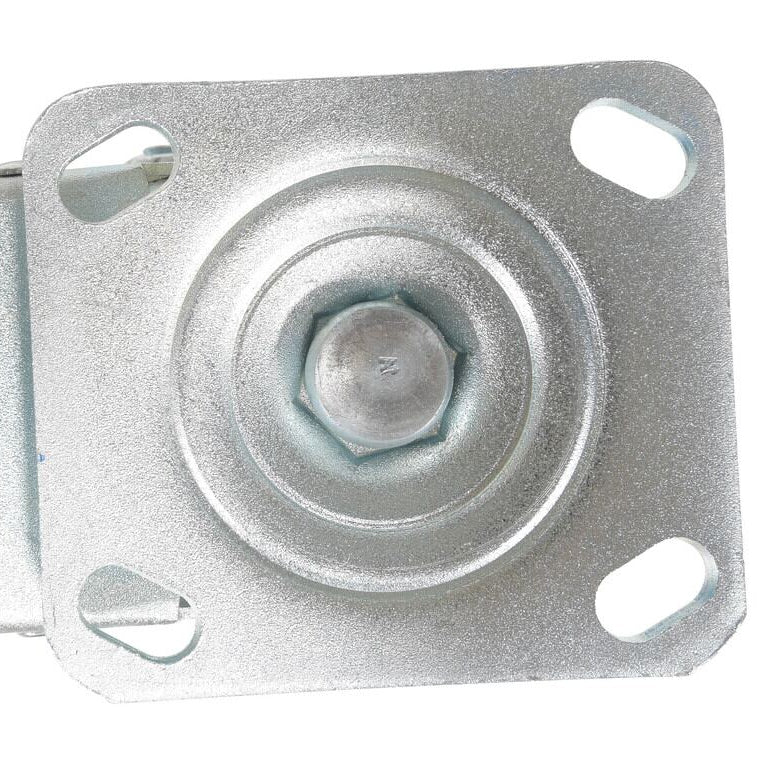

  • Top plate 114×100 mm
  • Overall height 5.71″

Technical Details Table

Housing Type Top Plate Swivel
Wheel Size 4 inch (101.6 mm)
Load Range Medium Duty (500–2000 lbs)
Wheel Material High Strength PU
Width of Tread 2 inch (50.8 mm)
Wheel Diameter 4 inch (101.6 mm)
Tread Type Flat Tread
Overall Height 5.71 inch (145 mm)
Swivel Lead 3.15 inch (80 mm)
Top Plate Size 114×100 mm
Bolt Hole Pattern 84×71 mm
Bolt Size 0.43 inch (11 mm)
Tread Material High Strength PU
Capacity 617 lbs (280 kg)
Housing Steel, Blue Zinc Plated
Bearing Type Dual Ball Bearings
Tread Hardness 95 Shore A
Low Temp -49°F (-45°C)
High Temp 194°F (90°C)
Unit Weight 5.6 lbs (2.54 kg)
Application Abrasion Resistance
Industry Intralogistics
Speed Limited 4 mi/hour (6.4 km/h)
