8inch Red Polyurethane on Iron Swivel Caster | Top Plate | 926 lbs Load

Home Medium & Heavy Duty Casters 8 inch Polyurethane-on-Iron Wheel Swivel Caster – 926 lbs Capacity (Top Plate, Roller Bearing)

8 inch Polyurethane-on-Iron Wheel Rigid Caster – 926 lbs Capacity (Top Plate, Roller Bearing)

$41.00

8 inch Polyurethane-on-Iron Wheel Swivel Caster with Brake (Top Plate, Roller Bearing) – 926 lbs Capacity

$49.00

8 inch Polyurethane-on-Iron Wheel Swivel Caster – 926 lbs Capacity (Top Plate, Roller Bearing)

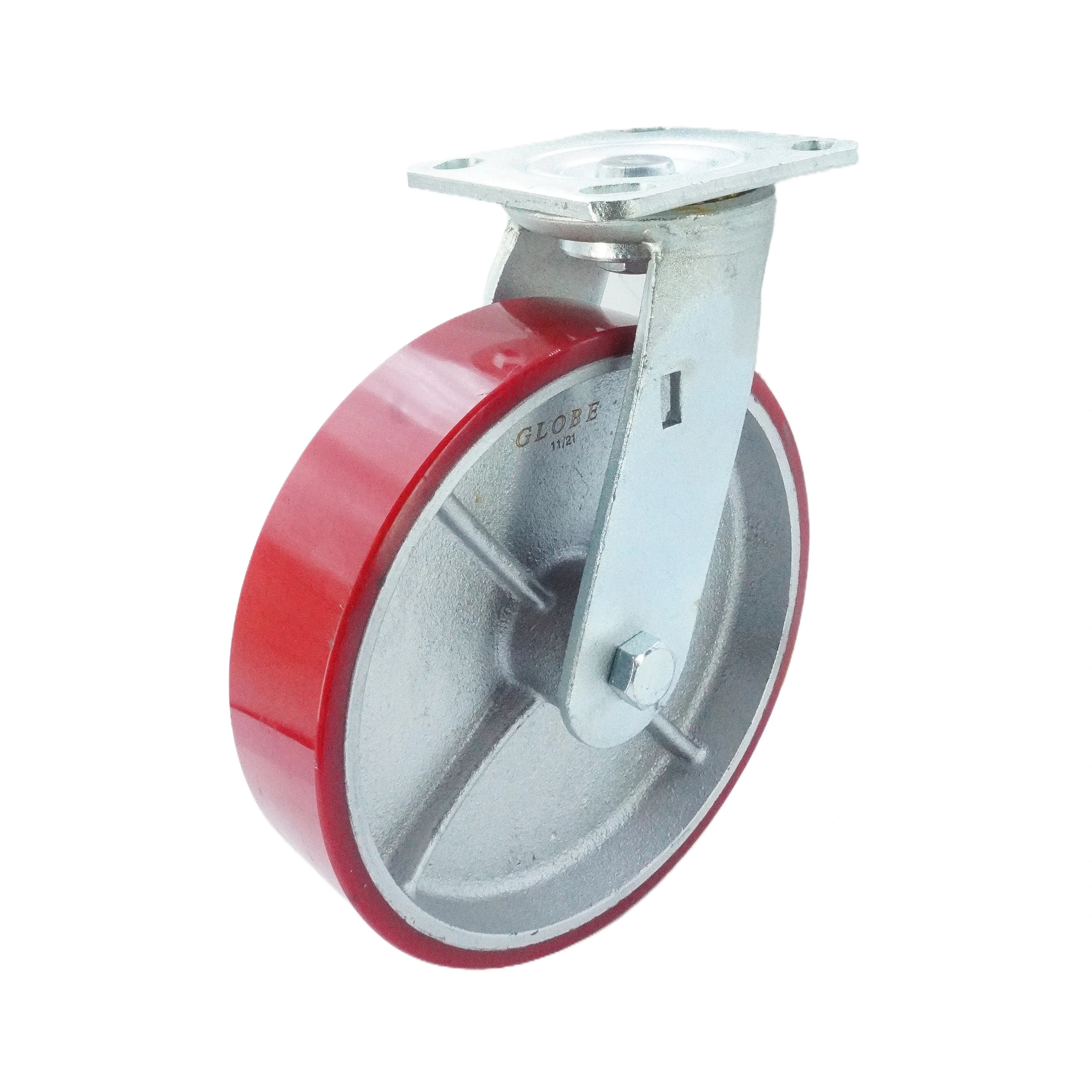

Top plate swivel caster with roller bearing and red PU wheel

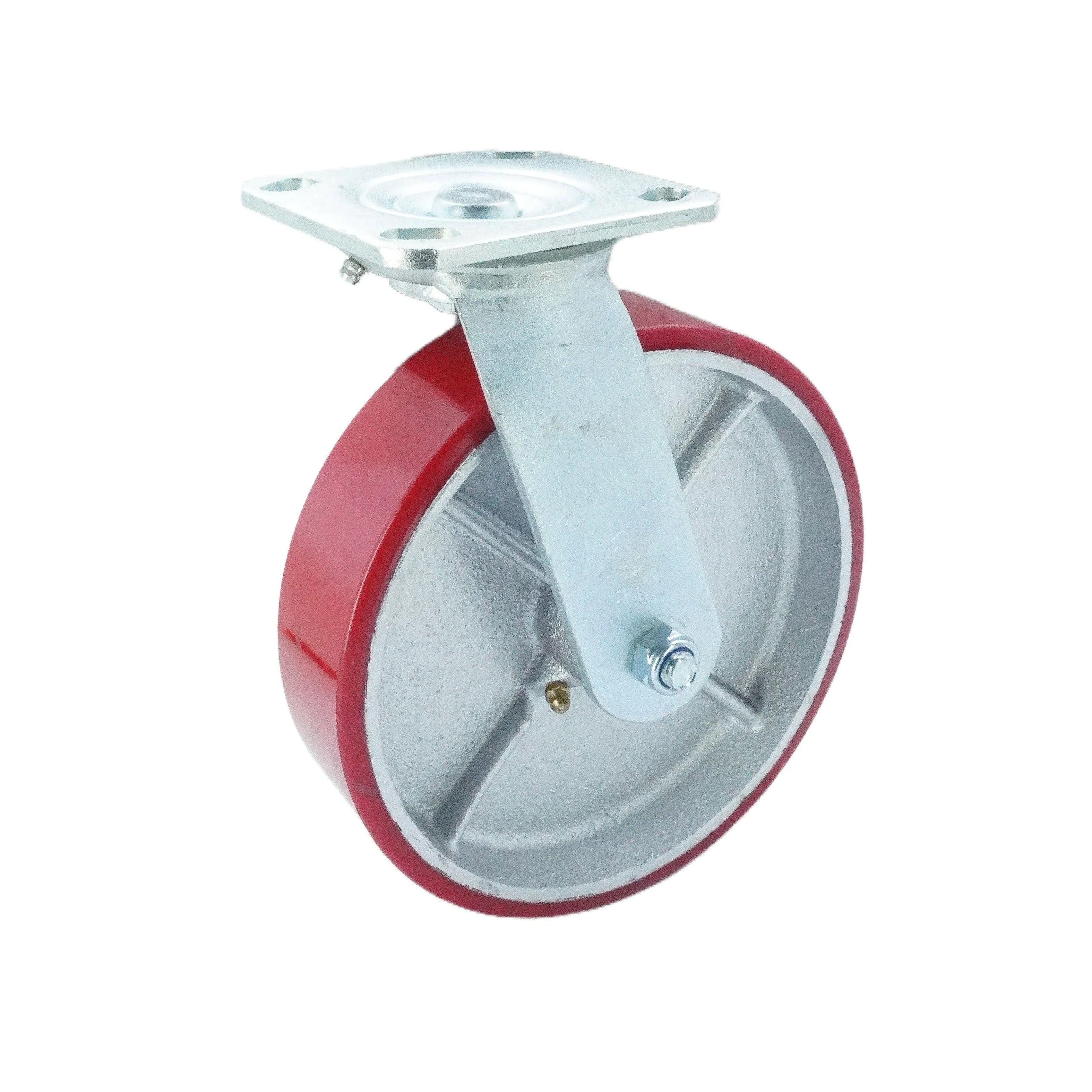

8×2 industrial PU caster with top plate side angle

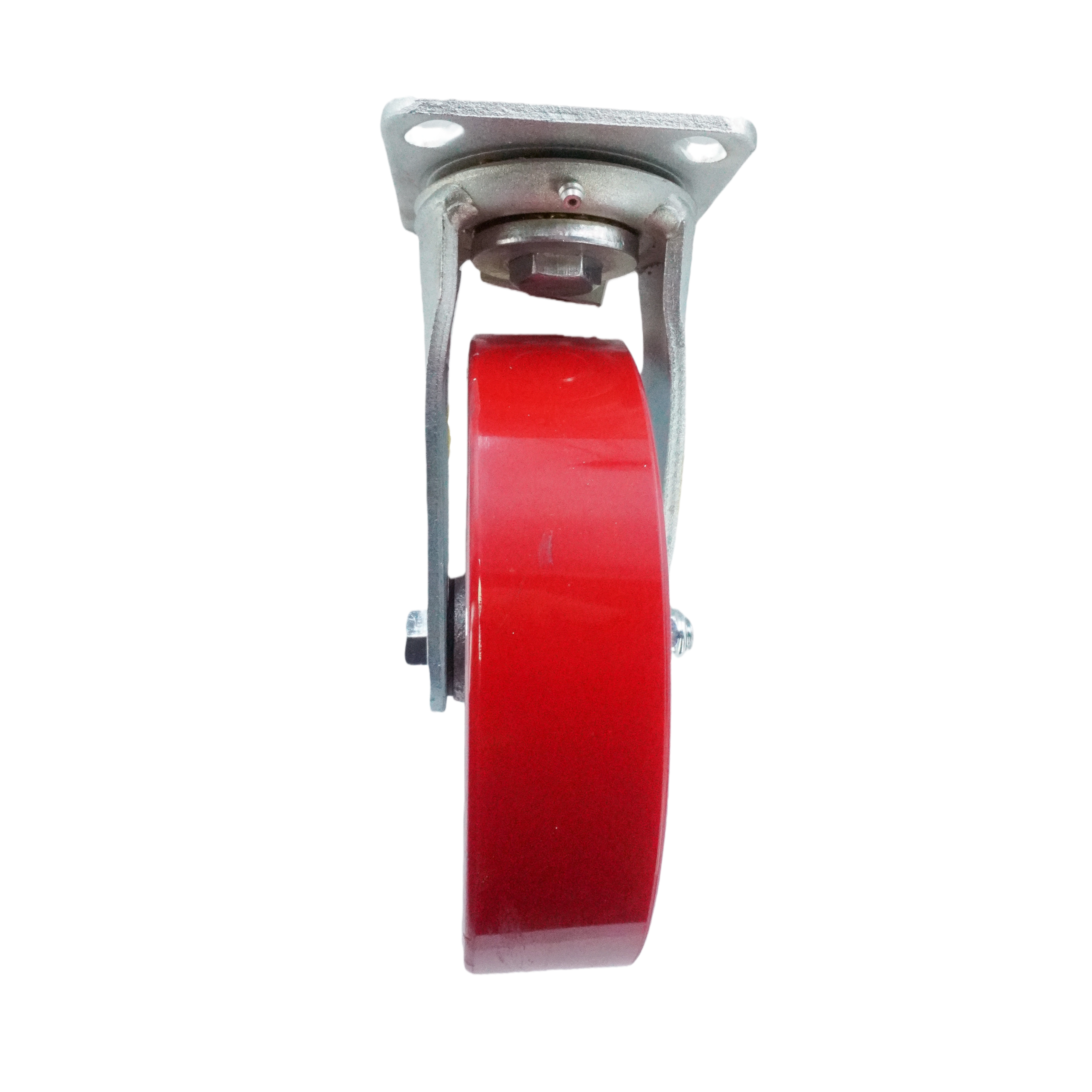

8×2 red polyurethane on iron swivel caster front view

4x4.5 inch caster top plate dimensions diagram with bolt hole spacing 3 inch and 2-5/8 inch centers

8 inch Polyurethane-on-Iron Wheel Swivel Caster – 926 lbs Capacity (Top Plate, Roller Bearing)

$45.10

This 8″×2″ Red Polyurethane on Iron Swivel Caster is engineered for reliable movement and long-lasting durability in industrial environments The high-strength cast-iron core supports heavy loads while the red polyurethane tread offers quiet, smooth rolling and excellent floor protection. Designed with a precision roller bearing and reinforced top-plate swivel assembly,...

SKU :
Categories : Industrial Casters, Medium & Heavy Duty Casters, Polyurethane-on-Iron (PU on Iron) Casters, Top Plate Swivel Casters

8 inch Polyurethane-on-Iron Wheel Swivel Caster – 926 lbs Capacity (Top Plate, Roller Bearing)

This 8″×2″ Red Polyurethane on Iron Swivel Caster is engineered for reliable movement and long-lasting durability in industrial environments

The high-strength cast-iron core supports heavy loads while the red polyurethane tread offers quiet, smooth rolling and excellent floor protection.
Designed with a precision roller bearing and reinforced top-plate swivel assembly, this caster provides low-friction maneuverability and stable support on warehouse floors, factory surfaces, and commercial equipment.
Ideal for carts, dollies, material-handling equipment, and mobile platforms in manufacturing, warehousing, and distribution operations.

Key Features

Heavy-duty red polyurethane tread for smooth & quiet rolling
Impact-resistant cast-iron core for long-term durability
Top plate swivel design for easy maneuverability
Roller bearing for reduced push force & long life
Suitable for concrete & smooth industrial flooring
Resistant to oil, abrasion, and chemicals

Applications

Warehouse & logistics carts
Manufacturing equipment
Tool & machine dollies
Assembly line platforms
Distribution & maintenance carts

Technical Details Table

Specification	Value
Housing Type	Top Plate Swivel
Wheel Size	8 inch (203 mm)
Load Range	Medium Duty (500 – 2000 lbs)
Wheel Material	Polyurethane on Iron
Tread Width	2 inch (50 mm)
Wheel Diameter	7.75 inch (197 mm)
Tread Type	Flat Tread
Overall Height	9.57 inch (243 mm)
Swivel Lead	5.91 inch (150 mm)
Top Plate Size	114 × 100 mm
Bolt Hole Pattern	84 × 71 mm
Bolt Size	0.43 inch (11 mm)
Capacity	926 lbs (420 kg)
Housing Finish	Steel, Blue Zinc Plated
Bearing Type	Roller Bearing
Tread Hardness	95 Shore A
Temperature Range	−49°F to 194°F (−45°C to 90°C)
Unit Weight	12.15 lbs (5.51 kg)
Speed Rating	4 mph (6 km/h)
Industry Use	Intralogistics / Industrial / Commercial
