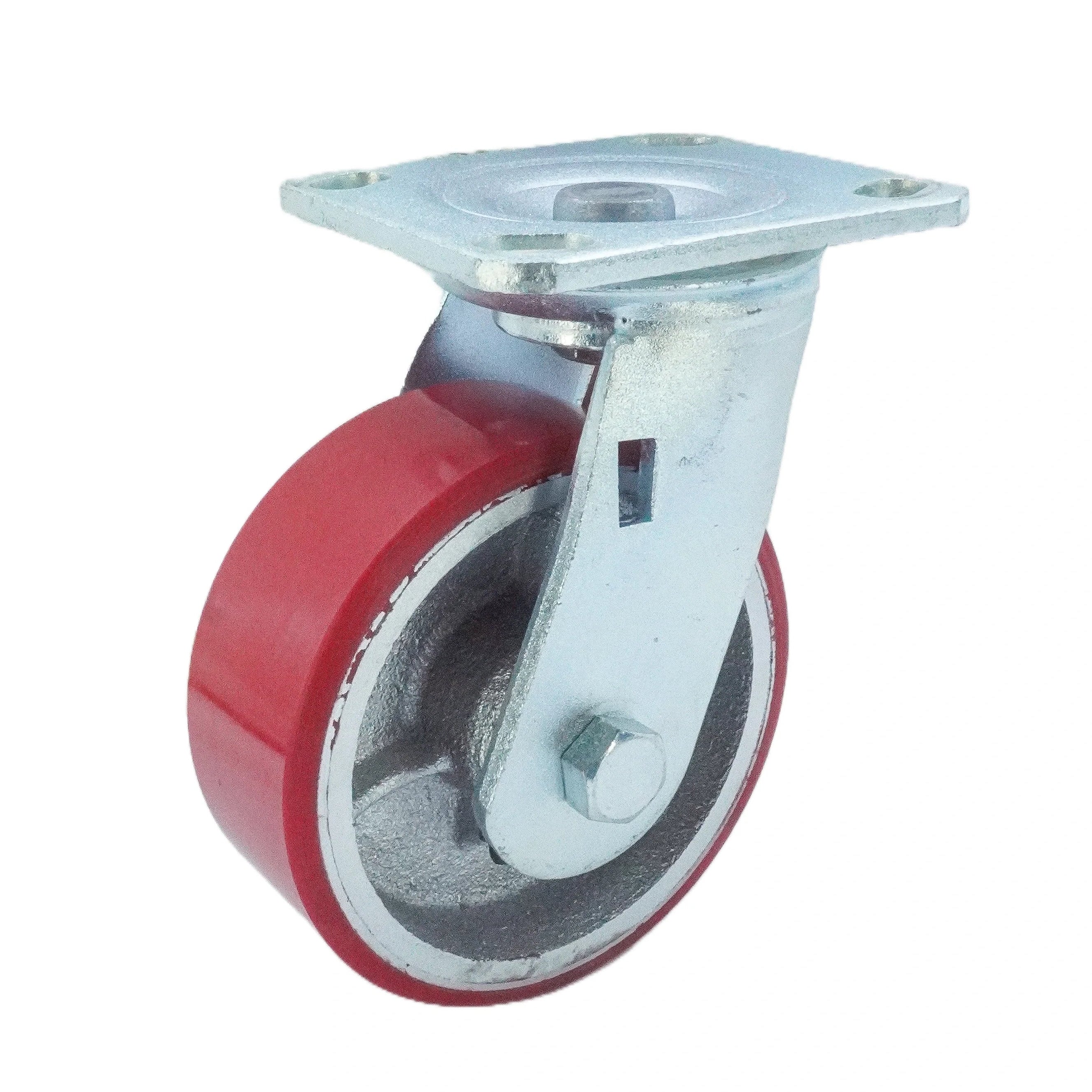

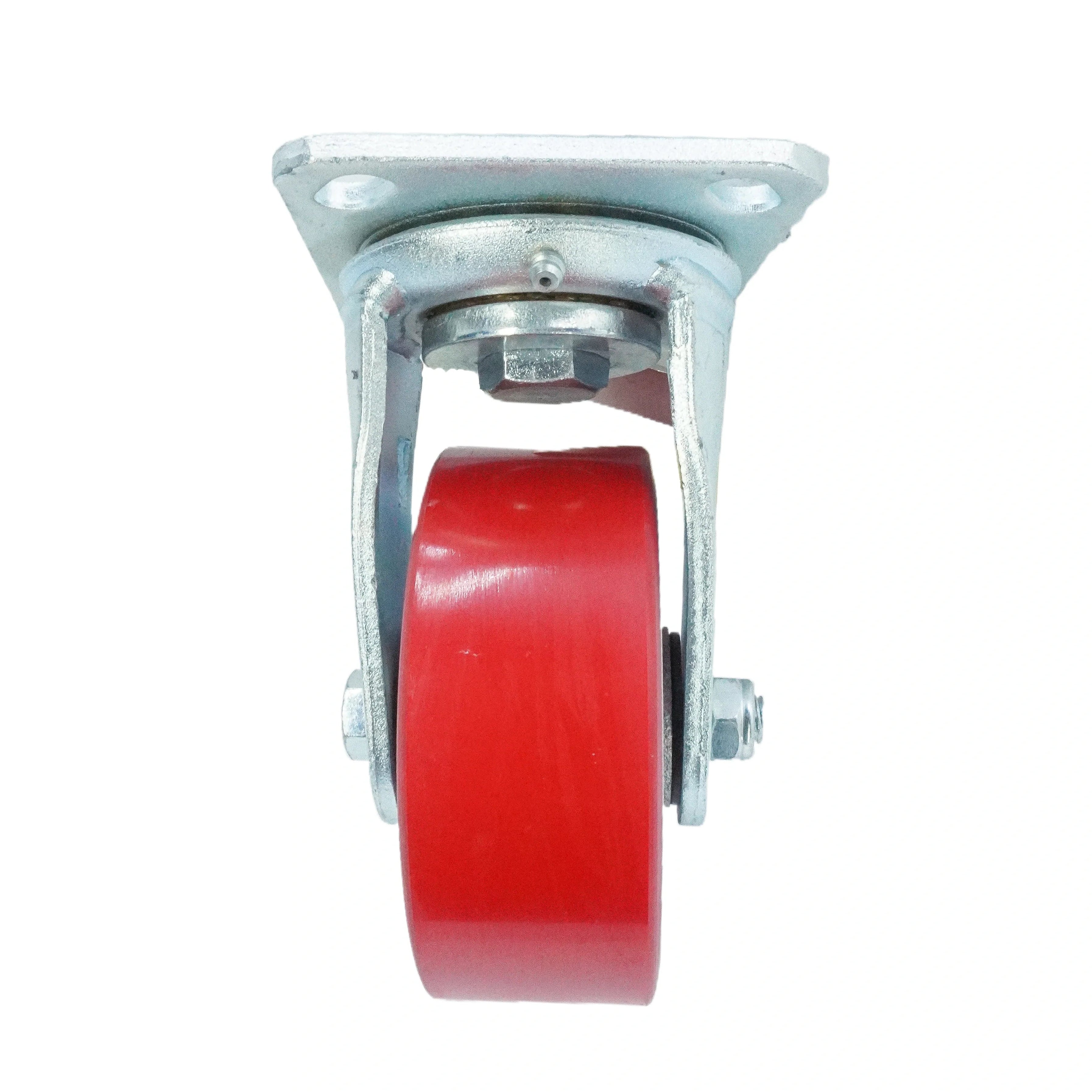

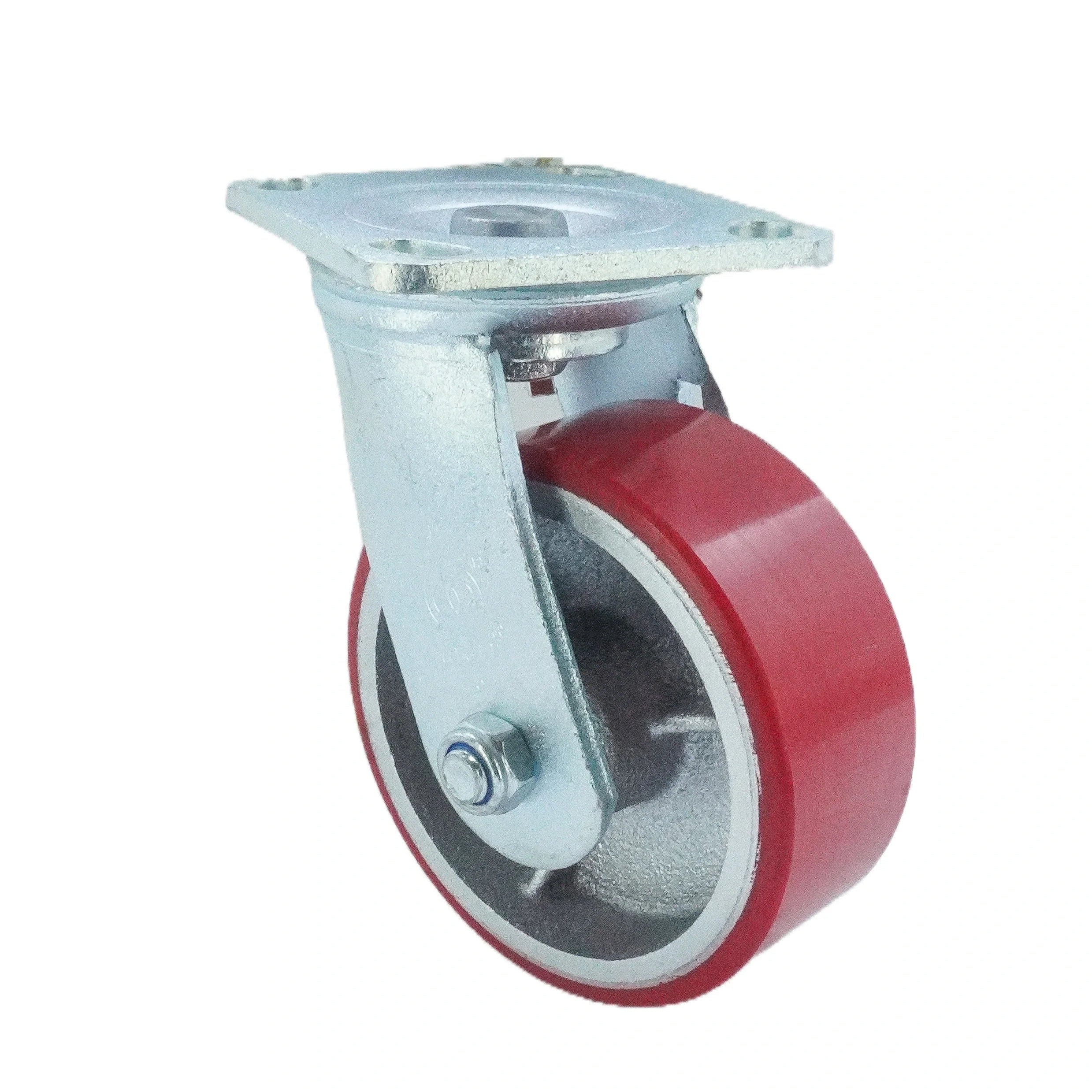

This 5"×2" polyurethane-on-iron swivel caster delivers durable, smooth mobility for industrial carts, warehouse equipment, fabrication racks, and shop dollies

• The red polyurethane tread provides quiet, vibration-reducing performance while protecting floors, making it suitable for concrete, epoxy, and coated surfaces.
• Built with a heavy-duty cast-iron core and precision roller bearing, this caster offers long-term strength and reduced rolling resistance under load.
• The high-strength steel top plate and yoke feature a corrosion-resistant blue zinc finish for demanding environments, including material handling areas, assembly plants, distribution centers, and institutional facilities.
• Designed for medium-duty applications up to 772 lbs per caster, this wheel provides reliable industrial mobility with excellent durability, ergonomic rolling effort, and stable floor contact.

Key Features

• Red polyurethane tread for quiet and smooth transport
• Cast-iron wheel core for maximum strength
• Roller bearing for reduced push effort
• Blue zinc-plated steel yoke
• Protects floors while supporting medium-duty loads
• Stable flat tread for controlled straight-line movement

Quick-View Specifications

• Wheel Size: 5" (127 mm)
• Tread Width: 2" (50 mm)
• Capacity: 772 lbs (350 kg)
• Wheel Material: Polyurethane on Iron
• Overall Height: 6.54" (166 mm)
• Swivel Lead: 3.78" (96 mm)
• Top Plate: 4.5"×4" (114×100 mm)
• Bolt Hole Pattern: 3.3"×2.8" (84×71 mm)
• Bolt Size: 0.43" (11 mm)
• Bearing: Roller Bearing
• Temperature Range: −49°F to 194°F (−45°C to 90°C)
• Wheel Hardness: 95 Shore A
• Unit Weight: 8.11 lbs (3.7 kg)
• Speed Rating: 4 mph (6.4 km/h)

Technical Details Table
